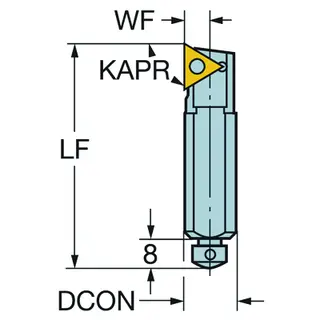

Tool cutting edge angle (KAPR)
90 °
Coolant exit style(CXSC)
no coolant exit Lead angle(PSIR)
0 ° Clamping type code(MTP)
clamp with screw through hole Connection - machine side(ADINTMS)
Boring round shank -metric: 12 Insert type(CUTINT_MASTER)
TCMT 110204 Minimum bore diameter(DMIN_2)
78 mm Maximum overhang (OHX)
68 mm Hand (HAND)
Left Connection diameter machine side(DCONMS)
12 mm Shank height(H)
10.5 mm Functional length(LF)
68 mm Functional width(WF)
6 mm Functional height(HF)
10.5 mm Torque(TQ)
0.9 Nm Weight of item(WT)
0.0679 kg Overall length(OAL)
68 mm Insert seat - metric(SSC_M)info
11 Insert seat size code imperial view(SSC_N)
1/4
